Standing water, muddy turf, and a soaked foundation after every storm signal one thing: your yard needs a real plan for moving water away from your home. A proper underground drainage network intercepts runoff at the surface and carries it to a safe discharge point, turning a swamp into usable green space.
I’m Mohammad Maruf — the founder and writer behind Drink4Good. I spend my time analyzing hardware specs, comparing material grades, and studying flow calculations so you don’t have to guess which components will hold up underground.
After working through the load ratings, flow capacities, and installation requirements of the market’s leading options, I’ve assembled a clear breakdown of the best french drain system for yards, driveways, and high-traffic landscapes that won’t leave you second-guessing your install.
How To Choose The Best French Drain System
A French drain system is more than just a pipe in a trench. The components you choose — catch basins, trench channels, dry wells, and connecting pipe — must work together to handle the volume of water your property sees. Focus on three factors: where the water is coming from, what surface load the system will bear, and how much water you need to move per minute.
Load Rating and Traffic Exposure
Not every drain can sit under a car. Class B (175 psi) covers light vehicle traffic at low speeds, while A15 and A125 classifications apply to pedestrian-only or occasional car zones. Putting a pedestrian-rated grate in a driveway guarantees a cracked surface after one winter. Match the load class to the actual traffic you expect.
Flow Rate and Catchment Capacity
Flow rate in gallons per minute (GPM) tells you how fast the drain can ingest water. A 12-inch square catch basin at 162 GPM handles a downspout or moderate lawn runoff. A trench drain spreads the intake across a wide channel edge. For heavy storms, you want an open surface area above 50 square inches per inlet and a pipe diameter of at least 4 inches.
Installation Complexity and Soil Type
Sand and loam absorb water fast, so a dry well works well. Clay soils drain slowly; you may need a larger tank or a longer trench run. Preassembled kits with knockout ports and adapter rings cut install time, but you still need to plan outlet placement. The bottom weepholes in some catch basins can bypass the pipe outlet if not sealed, so read the fine print.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| NDS 50 Gal. Flo-Well Dry Well | Dry Well | Heavy infiltration in clay or loam | 50-gallon capacity, stackable to 4 units | Amazon |
| StormDrain 20-in. Catch Basin 2-Pack | Catch Basin | Large-volume downspout collection | 12-gallon capacity per basin, 22.9″ footprint | Amazon |
| Natotela A15 Deep Trench Drain 4-Pack | Trench Drain | Long driveway or walkway edge drainage | 7.8″ deep channel, 157.5 in. total length | Amazon |
| Natotela 18x18x15 Catch Basin | Catch Basin | Deep collection with debris basket | 15″ depth, FRP grate, removable debris basket | Amazon |
| VEVOR Trench Drain 6-Pack | Trench Drain | Cost-effective long channel runs | 5.9″W x 5.1″H x 39.4″L per channel, A125 load | Amazon |
| NDS Square Catch Basin Drain Kit | Catch Basin | Entry-level downspout collection | 162 GPM, 12″ grate, 53.1 sq. in. open area | Amazon |
| Zebra Clean Sewer Jetter Kit | Maintenance Tool | Clearing clogs in existing drain lines | 100 ft hose, 5800 PSI, includes rotating nozzle | Amazon |
In‑Depth Reviews
1. NDS FWAS24 50 Gal. Flo-Well Dry Well System Kit
The NDS Flo-Well takes a different approach than a catch basin or trench channel: it stores water underground and lets it percolate into the soil. The 50-gallon capacity is enough to handle runoff from two downspouts in a moderate storm, and the open-bottom design lets water seep into a gravel base rather than pooling in a tank. You can stack up to four units for 200 gallons of detention volume without needing to haul in tons of stone.
The kit comes with three side panels and a top cover, each with multiple knockout points for 4-inch S&D or schedule 40 pipe. The 12 side-panel knockouts give you flexibility to connect inbound pipes from multiple directions. Assembly is tool-free — sections snap together, though many users add construction adhesive and a ratchet strap overnight for a permanent bond. The system supports pedestrian traffic and lawn tractors when buried at least 12 inches deep.
It’s ideal for properties with soil that drains reasonably well. If you have heavy clay, the Flo-Well works as a collection pit before water slowly dissipates, or you can use it as a sump pump basin. The bottom panel is sold separately if you need a closed base for pumped discharge. For a gravel-free dry well that expands with your site needs, this kit sets the standard.
Why it’s great
- 250% more detention volume than a gravel-only pit of the same footprint
- Side knockouts accept 4-inch S&D and Sch 40 pipe
- Stackable up to 4 units high for deep installations
Good to know
- Bottom panel sold separately if you need a closed sump pit
- Requires at least 12 inches of cover for pedestrian traffic
2. StormDrain 2-Pack FSD-3017-20BKIT 20-in. Large Round Catch Basin
Landscape contractors and serious DIYers will appreciate what StormDrain packs into this 2-pack. Each basin holds 12 gallons of water and measures 22.9 inches square with a 16.4-inch depth, giving you a large collection point for downspout runoff or low-spot drainage. The heavy-duty polyethylene construction feels dense and rigid, and the green grate sits flush enough to handle lawn mower traffic.
The standout feature is the adjustable outlet height — pre-scored holes at multiple positions let you set the pipe inlet at the ideal elevation for your slope. The kit includes soft vinyl adapters with peel-out sections that fit 3-inch, 4-inch, and 6-inch pipe sizes. A landscape contractor in the reviews noted that other basins force you to accept a single height, but this design gives you options when grading is tight.
Each basin weighs about 11.5 pounds and comes with gaskets for the pipe connections. One reviewer mentioned that the lowest precut hole is too close to the bottom to use the gasket effectively, so you may need silicone sealant there. If you need large-capacity collection points that don’t flex under heavy rain, this two-pack delivers contractor-grade volume at a price that undercuts specialty suppliers.
Why it’s great
- Multiple outlet height positions for slope alignment
- 12-gallon capacity per basin handles heavy downspout flow
- Durable polyethylene body stands up to backfill pressure
Good to know
- Lowest pre-scored hole may not accept the included gasket
- No printed instructions included in the kit
3. Natotela A15 Deep Profile Trench Drain System 4-Pack
When surface water runs the length of a driveway or patio edge, a trench drain intercepts it better than a point source catch basin. This Natotela system uses four channels, each 39.4 inches long, for a total run of 157.5 inches. The 7.8-inch depth gives you substantial capacity underground, which helps when you need to move water quickly away from a slab or foundation wall.
The channels are made from high-density polyethylene with a perforated grate that uses a dot-textured anti-slip surface. The grates slide into the channel without screws or clasps, making cleaning straightforward. Back reinforcing ribs on both the channel and the grate prevent sagging under foot or light vehicle traffic, and the A15 load class covers pedestrian areas, patios, and sidewalks.
Bottom outlets measure 2-15/16 and 4-5/16 inches, and side outlets come at 2 and 2-11/16 inches. The kit includes two outlet adapters. Several reviewers noted that the plastic can become brittle in freezing temperatures before installation, so let the parts warm up before cutting. The deep profile gives you an advantage in yards with subtle slopes where shallow channels would lose capacity too quickly.
Why it’s great
- Deep 7.8-inch channel handles high-volume surface runoff
- Grates snap in without fasteners for easy debris removal
- Reinforced ribs prevent flex under load
Good to know
- HDPE can crack in cold if handled roughly before installation
- Only two end caps included for the full run
4. Natotela 18x18x15 Catch Basin with Fiber Glass Grate
If you need a single large collection point for a low spot or a downspout tie-in, this 18x18x15-inch catch basin offers serious volume. The polyethylene box holds water while the fiber-reinforced plastic grate resists UV degradation and theft — FRP has no recycling value, so it stays put in public-facing installations. The grate sits heavy and sturdy, and reviewers note that it supports walking and light vehicle weight without flexing.
The basin arrives without pre-cut holes, which is a deliberate design choice. You cut the side or bottom openings with a hole saw to match the exact diameter of your existing pipe — 2-inch, 3-inch, or 4-inch. This approach eliminates the need for adapter rings or plugs, but it also means you need to plan your outlet placement before mixing concrete. The included debris basket traps leaves and sediment before they enter the pipe, reducing long-term maintenance.
You may feel the price is high for a polyethylene box and FRP grate, but the material quality justifies it for permanent installations. The FRP grate alone costs more to manufacture than standard plastic grates, and the 15-inch depth gives you room to set the basin at a proper grade. If you only need one or two heavy-duty collection points, this basin will outlast cheaper alternatives by years.
Why it’s great
- FRP grate resists UV damage and theft
- No pre-cut holes lets you match pipe size exactly
- Debris basket keeps downstream pipes clear
Good to know
- Requires a hole saw for outlet installation
- Premium pricing reflects the FRP grate and build quality
5. VEVOR Trench Drain System with Plastic Grate 6-Pack
VEVOR built this trench drain system to compete directly with big-box store brands at a lower price per foot. The six-pack covers a total of 236.4 inches of linear drainage, with each channel measuring 5.9 inches wide and 5.1 inches deep. The A125 load rating is suitable for occasional car traffic, so you can install these in driveways without worrying about grate failure under passenger vehicles.
The HDPE plastic body has a smooth interior surface that improves water flow velocity compared to rough castings. Each channel comes with a built-in bottom outlet at 3.1 or 3.6 inches, plus a side outlet at 2.2 inches. You can connect the channels together using the interlocking end design, though several reviewers note that the connection relies on friction rather than a positive snap — adding PVC cement or adhesive to the joints ensures they stay aligned under concrete.
Installation is straightforward: dig a trench, set the channels in a concrete bed, and connect pipe to the built-in outlet. The grates detach without tools, which makes cleaning out silt and leaves easy. One minor drawback is that the 6-pack includes only one end cap, so you may need to order a second for a closed-end run. At this price point for the total coverage length, the VEVOR system delivers high value for driveway and patio edge drainage.
Why it’s great
- Low cost per linear foot for driveway-length runs
- A125 rating handles light vehicle traffic
- Built-in outlets eliminate need for separate adapter purchases
Good to know
- Only one end cap included for six channels
- Channel sections rest together without a locking mechanism
6. NDS Square Catch Basin Drain Kit 12 in.
The NDS 1200BKIT is the catch basin most DIYers start with, and for good reason. The 12-inch square grate offers 53.1 square inches of open surface area, allowing a flow rate of 162 GPM. That volume handles a standard downspout in a heavy downpour or collects runoff from a small paved area. The Class B load rating (up to 175 psi) means it survives pneumatic tire traffic and light trucks at low speeds.
Installation is simple: dig a hole, connect 3-inch or 4-inch S&D or schedule 40 pipe using the included outlet adapters, and backfill. The keyed side openings lock the adapters in place without tape or glue. Four weephole knockouts on the bottom let standing water drain out, though some users plug these to ensure water flows to the pipe outlet instead of seeping into the gravel below. The kit includes two outlet adapters and one plug.
Reviewers consistently mention the value — the price point makes it an easy entry into a French drain system, and the basin is lightweight enough for one person to handle. If you are connecting multiple downspouts or covering a large paved area, you can daisy-chain several basins with pipe runs. The limited lifetime warranty adds peace of mind for underground installation where replacement is difficult.
Why it’s great
- High open surface area for rapid water intake
- Keyed outlet adapters lock without glue or tape
- Lightweight and easy for one-person installation
Good to know
- Bottom weepholes may bypass pipe outlet if not sealed
- Class B rating limits use to low-speed vehicle traffic

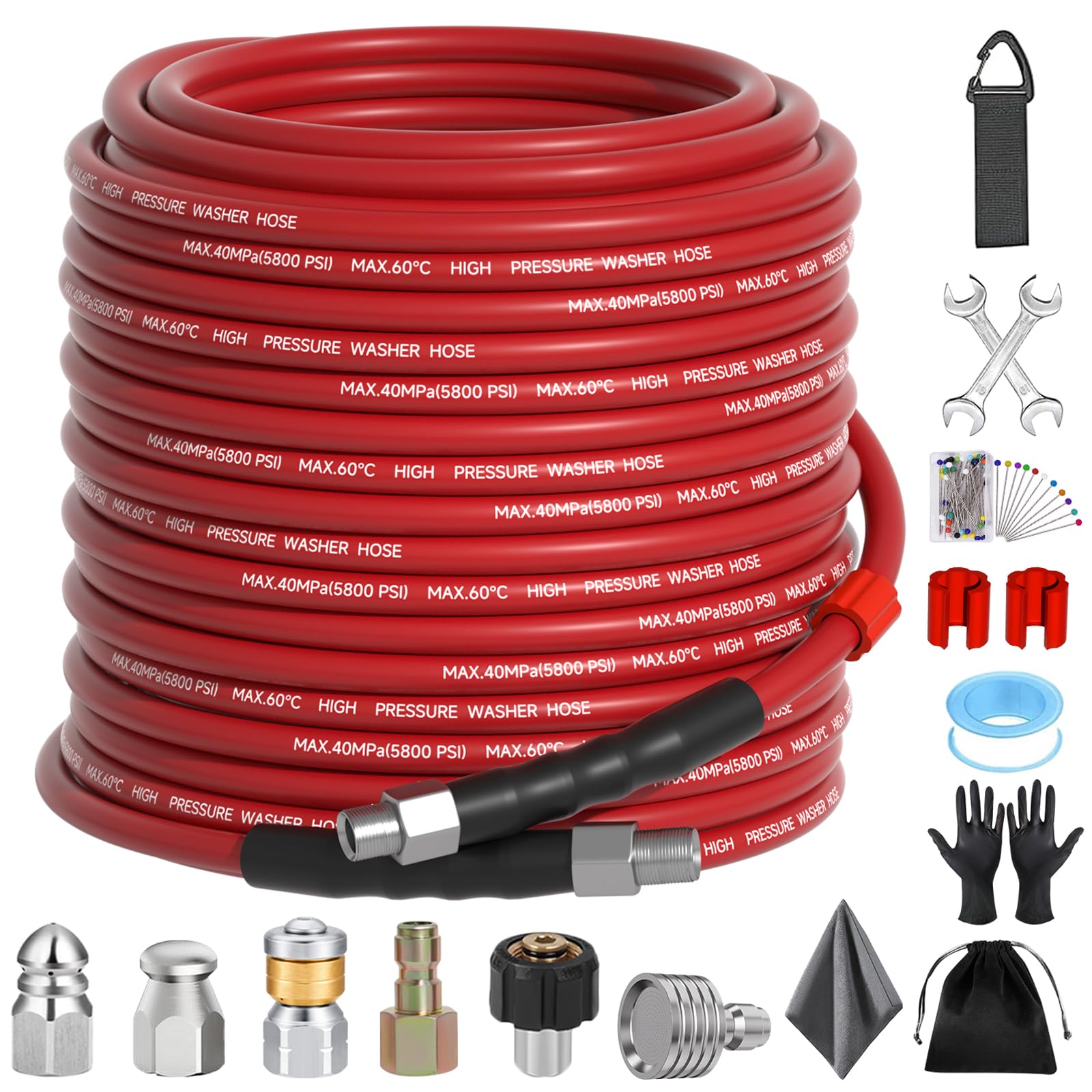

7. Zebra Clean Sewer Jetter Kit 100FT for Pressure Washer
Even the best French drain system will eventually need maintenance. Silt, root intrusion, and organic buildup can clog the perforated pipe or the outlet line over years of service. This sewer jetter kit turns any pressure washer into a drain cleaning tool, flushing out debris with a 100-foot hose rated to 5800 PSI. The hose has a burst pressure of 11,000 PSI, with a thermoplastic inner tube and a polyurethane outer cover that resists oil and abrasion.
The kit includes five nozzles: a rotating sewer jet nozzle with three backward-spraying jets, a mushroom nose nozzle with a 0-degree front jet and three 33-degree rear jets, a pointed sewer nozzle, a button nose nozzle, and a spray nozzle for rinsing. The rotating nozzle provides three-dimensional cleaning action that scours the pipe walls, while the mushroom nozzle pushes through soft clogs. The 1/4-inch M-NPT quick connectors on both ends let you attach the hose to your pressure washer gun or wand.
Users report that the hose self-propels through 50 to 60 feet of pipe, which is enough to clear most French drain laterals. The kit also comes with spare parts: wrenches, Teflon tape, a storage bag, and marking rings to identify blockage depth on the hose. If you have an existing drain system that is slowing down or has standing water in the inspection port, running a jetter through the pipe once a year will extend the system’s life significantly.
Why it’s great
- 100-foot hose reaches most residential drain runs
- Rotating nozzle scours pipe walls more effectively than static jets
- Complete kit includes all fittings, tape, and wrenches
Good to know
- Requires a compatible pressure washer — not included
- Hose flexibility may limit sharp 90-degree bends in older pipe
FAQ
Do I need a catch basin or a trench drain for my French drain system?
How deep should I bury the catch basin or trench drain?
Can I connect multiple catch basins to one pipe run?
What size pipe should I use for a French drain outlet?
How do I prevent the catch basin from settling or tilting after installation?
Final Thoughts: The Verdict
For most users, the best french drain system winner is the NDS Flo-Well Dry Well because it combines 50-gallon detention capacity with a stackable modular design that grows with your property’s needs. If you prefer a large catch basin with adjustable outlet heights for a downspout collection point, grab the StormDrain 2-Pack. And for a cost-effective trench drain that covers long driveway edges without breaking your budget, nothing beats the VEVOR 6-Pack Trench Drain System.
